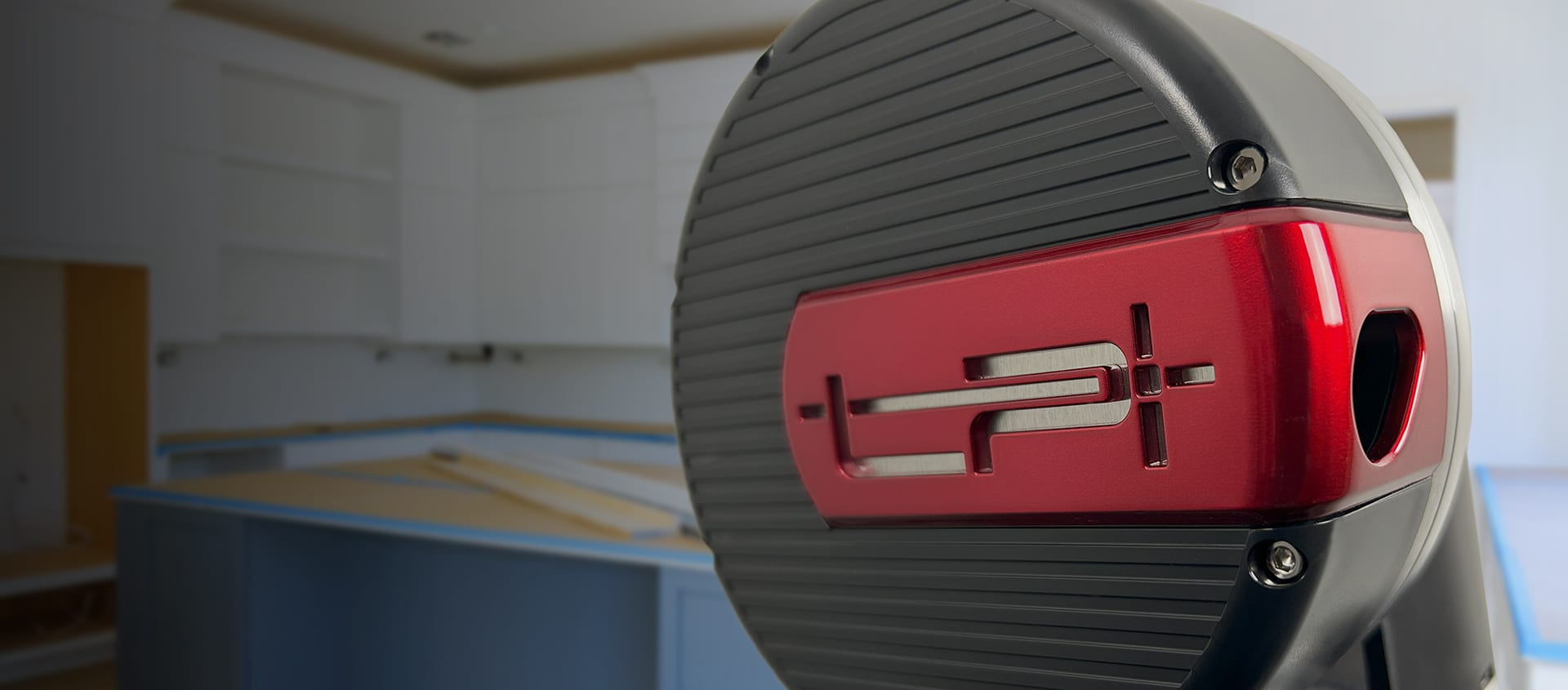

The LT-2D3D Laser Measurer offers custom cabinetmakers and architectural millwork companies a new and invaluable tool for quickly and easily capturing complex 3D measurements like residential and commercials interiors, stairs, outdoor living spaces, building facades and more.
Win more bids on tough jobs by showing greater technological expertise than the competition and measuring faster with greater accuracy to more quickly meet the expectations of today’s short-on-time, budget conscious, purchase savvy customers.
With an optional high-resolution, high quality, zoomable, digital camera, the laser system provides the most accurate measurements available in the market from a single location in the room. Fabricators can now safely measure remote locations on the job site without the need to use scaffolding and ladders. Whether it’s adding curves, outdoor living spaces or lofty architectural features, this system’s capabilities are designed to open new business opportunities that were impossible before.
Countertop fabricators were the first industry to see the value that digital templating with our lasers could do for their business. Once we introduced the LT-55 XL and then the LT-2D3D models, for the first time ever, a templator was able to complete jobs on-site, email them back to the office and head to the next job. By the time they arrived at their next job, the fabrication shop already assigned the tool paths, placed the granite slab on their CNC/waterjet/fab center and was cutting it.
Time savings, accuracy and repeatability is where you will save money on each job when using our Laser Templators. Let us show you how you can do the same as the 2600+ companies we have already helped bring into the world of digital templating.
In 2014 we began working with industry leaders including Trivantage and CAD Effects to produce a digital templating package that would suit the industrial fabric companies. This package includes our TemplatePro software and is paired with the 3D Disto Laser Templator. It increases accuracy and efficiency, while reducing time on site and production time. Complex jobs including awnings, shade sails, trailer covers, dodgers, bimini tops, enclosures, and any other jobs where you would need digital templating are now simple to measure.
Whether you are measuring directly in front of you or an object fifty feet away, the 3D Disto Laser Templator is perfect for getting precise measurements in our TemplatePro software. Once measured, you will see a full, 3D wire frame of the job. We import those jobs into RhinoCAD and with the use of our custom MPanel flattening software, each panel is laid flat for cutting. MPanel takes into account the fabric you are using (weft/warp), allows you to determine seam offsets for sewing and can even stamp the panels with the job name.
Once jobs are flattened your panels can be either sent to a cutting table or a plotter which will mark the fabric for you to cut later. The best part of what we have put together is that you DO NOT NEED ANY PRIOR CAD KNOWLEDGE. Within a matter of a few hours, we can train you to digitally template, edit, flatten, and cut your jobs.
Accuracy and efficiency are two of the most important aspects when working with composite materials used for building and repairing boat hulls. Normally this is a time consuming effort. Measuring by hand and making templates to later be digitized is not only inefficient, it also introduces the risk of transcription errors. “Was that written number supposed to be a 4 or a 9?” You wouldn’t need to recheck if you were using our digital templating systems.
The LT-2D3D Laser Templator and 3D Disto Laser Templator will digitally measure any surface you are building or repairing including hulls, railings, covers, hatches and windows. If you can collect all the measurements in a quarter of the time it takes your competitor down the street, leading to quicker turnaround times, which company are your customers going to choose?
The best part of what we have put together is that you DO NOT NEED ANY PRIOR CAD KNOWLEDGE. Within a matter of few hours, we can train you how to digitally template even the most complex jobs you run into.
There are literally hundreds of uses for our lasers that both digitally measure jobs and are used for alignment.
Digital Templating (LT-2D3D, LT-55 XL, & 3D Disto Laser Templators)
Countertops, back splashes, cabinet bases, millwork, soffits, stairs, showers, tub surrounds, awnings, shade sails, boat covers, trailer covers, enclosures, boat hulls, dodgers, pool liners, landscaping, metal fabrication etc.
Alignment (GS-40 & GS-28 Saw Lasers, & SL-24 Laser Square)
Saw blade alignment, cutting guides, cabinet layout, cutting and layout (90° & 45° for stone, tile, wood, vinyl and carpet), trowel over mortar (no more snapping chalk lines), pattern matching, deflection testing, subcontractor inspection, foundation alignment, out-of-square/out-of-level checking, slopes, drains etc.
